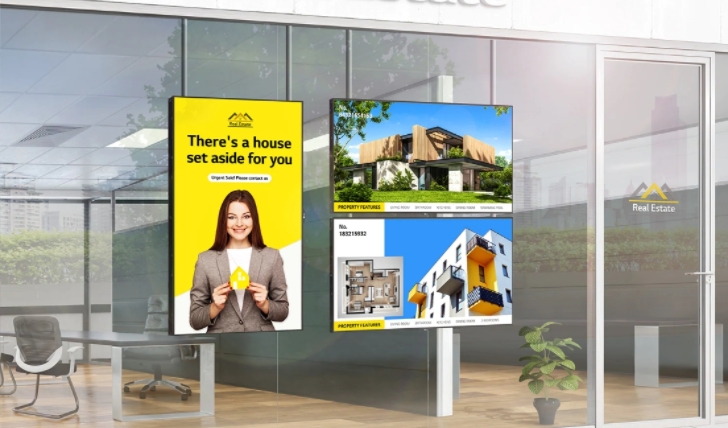

49“window facing display high brightness 3000nits

General

• Screen Size

  49inch

• Screen Active Area

  1073.8 x 604.0mm

• Resolution

  1920 x 1080

• Aspect Ratio

  16:9

• Type

  MiniLED BLU

• Brightness(nit)

  3500nit

• Contrast Ratio

  1300:1

• Dynamic CR

  Up to 350000:1

• Color Depth

  16.7M

• Color Gamut

  72%

• Viewing Angle(H/V)

  178°/178°

• Operation Hours

  24/7

• Response Time

  8ms(Typ)

• Screen Orientation

  Portrait or Landscape

System

• OS

  Android 14

• CPU

  ARM Quad Core Cortex-A73

• GPU

  Arm Mali-G52 MC1

• DDR

  DDR4 4GB (DDR 4 8GB Optional)

• ROM

  32GB EMMC

• Language

  Chinese/English

Special

• Cloud Advertising Distribution System

  Optional

• Cloud Splice System

  Optional

• Smart Monitoring System Cloud

  Optional / CetusMSC

• HDMI Loop

  Yes

• Ethernet Loop

  Yes

• Fanless Design

  Yes

• Dynamic Energy Saving

  Yes

• HDR

  Yes

• Local Dimming

  Yes

• Direct Sunlight Design

  Yes

• Open API Control Command

  Yes

• Open RS232 Control Command

  Yes

• Fail Over Support

  Yes

Connectivity

• Input

  USB2.0 x 2 ,HDMI IN x 2 ,Ethernet（RJ45） x 2 ,RS232（RJ45） x 1 ,IR in x 1 ,Sensor x 1

• Output

  HDMI Out x 1 ,Audio out x 1

Network connection

• Wifi or LAN

  Yes

• 3G/4G connection

  Optional

Speaker

• Build in speaker

  Yes

• Line-out Suppoert

  Yes

• BT Speaker Support

  Yes

Thermal management

• Smart Backlight Control

  Yes

• Smart Temperature Control

  Yes

• Smart Fans Control

  Fanless

• Overheating protection

  Yes

Physical

• IP rating

  IP5X （Front Panel）

• Glass

  N/A

• Shell

  Aluminum

• Standard Color

  Black

• Bezel width(T/L/R/B)

  10mm

• Dimensions(L/W/D)

  1096.18 x 626.4 x 56.85mm

• VESA Mount

  300 x 250mm

• Weight (kg)

  N.W 21.4kg G.W 26.7kg

• Packing Dimensions(W/H/D)

  1224x 759x 180mm

• 20GP container capacity (pcs)

  96 PCS

• 40GP container capacity (pcs)

  216 PCS

Operation

• Working environment

  Indoor window facing

• Auto Brightness control

  Light sensor

• Operation Temperature (ambient temp.)

  -10℃ to +35℃ (Direct Sunlight) -10℃ to +45℃ (w/o Direct Sunlight)

• Operation Humidity

  10% to 80%

• Storage Temperature

  -10℃ to +60℃

• Storage Humidity

  10% to 80%

Power

• Power Supply

  AC 110 /220V,50/60Hz

• Power Type

  Built-In Power

• Standby Power consumption

  <0.5W

• Max power concumption

  220W
