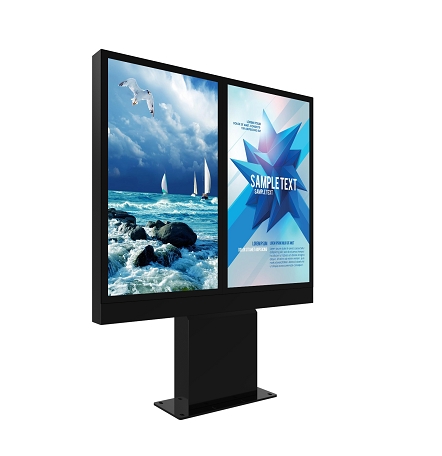

1x2 55inch outdoor drive-thru kiosk

General

• Screen Size

  55inch

• Screen Active Area

  1209.6 x 680.4mm

• Resolution

  1920 x 1080

• Aspect Ratio

  16:9

• Type

  MiniLED BLU

• Brightness(nit)

  4000 nits(Typ.), 3500 nits(Min.)

• Contrast Ratio

  1000:1

• Dynamic CR

  Up to 350000:1

• Color Depth

  16.7M

• Color Gamut

  72%

• Viewing Angle(H/V)

  178°/178°

• Operation Hours

  24/7

• Response Time

  6ms

• Screen Orientation

  Portrait

System

• OS

  Android 9.0

• CPU

  ARM Quad Core Cortex-A53 1.5G

• GPU

  Arm Mali-G52 2EE MC1

• DDR

  DDR 2GB

• ROM

  16GB EMMC

• Language

  Chinese/English

Special

• Cloud Advertising Distribution System

  Optional

• Cloud Splice System

  Optional

• Smart Monitoring System Cloud

  Optional / CetusMSC

• HDMI Loop

  Yes

• Ethernet Loop

  Yes

• Fanless Design

  N/A

• Dynamic Energy Saving

  Yes

• HDR

  Yes

• Local Dimming

  Yes

• Direct Sunlight Design

  Yes

• Open API Control Command

  Yes

• Open RS232 Control Command

  Yes

• Fail Over Support

  Yes

Connectivity

• Input

  USB2.0 x 2, HDMI IN x 2, Ethernet (RJ45) x 2, RS232 (RJ45) x 1

• Output

  HDMI Out x 1, Line out x 1

Network connection

• Wifi or LAN

  Yes

• 3G/4G connection

  Optional

Speaker

• Build in speaker

  Yes

• Line-out Suppoert

  Yes

• BT Speaker Support

  Yes

Thermal management

• Smart Backlight Control

  Yes

• Smart Temperature Control

  Yes

• Smart Fans Control

  Yes

• Overheating protection

  Yes

Physical

• IP rating

  IP66

• Glass

  AR High Permeability Glass

• Shell

  Aluminum + Metal

• Standard Color

  Black

• Bezel width

  63mm

• Dimensions(L/W/D)

  1337.6 x 808.4 x 121.6mm

• VESA Mount

  -

• Net Weight

  84.4kg

• Packing Dimensions(W/H/D)

  1488 x 960 x 262mm

• 20GP container capacity (pcs)

  56

• 40GP container capacity (pcs)

  120

Operation

• Working environment

  Outdoor

• Auto Brightness control

  Light sensor

• Operation Temperature (ambient temp.)

  -40℃ to 50℃

• Operation Humidity

  10% to 80%

• Storage Temperature

  -20℃ to +60℃

• Storage Humidity

  10% to 80%

Power

• Power Supply

  100 or 240V AC, 50/60Hz

• Power Type

  Built-In Power

• Power Consumption

  Max power: 430W Average power (under IEC): 182W Max power with heating module: 1000W
